CASE STUDIES

Optimizing Production Lines for Assembly & Testing

Owens Design enables our customers to optimize their production lines through careful selection and integration of process technologies and automating the right process steps. Our expertise in machine control and factory interface software ensures production implementation success. In one example, we were able to develop and deploy high speed production systems that processed raw stock into fully finished and tested thin film solar cell devices, reducing processing cost by 10x.

Contact us to learn more about custom automation solutions

Business Proposition

The CTO at a large thin film solar manufacturer was under tremendous pressure to reduce their product cost. He believed it would be possible to insource the production of a critical electrical component which would reduce its cost by a factor of 10, but did not have the time or available staff to prove it out.

Working with a small team at Owens, the proposed manufacturing process was demonstrated by conducting multiple proof of process steps in parallel. Once the process risk was eliminated, Owens developed the overall manufacturing system which included web handling, die punching, heat staking, electrical test, metal cutting, and vision inspection. The process worked as expected and multiple systems were installed in low cost regions.

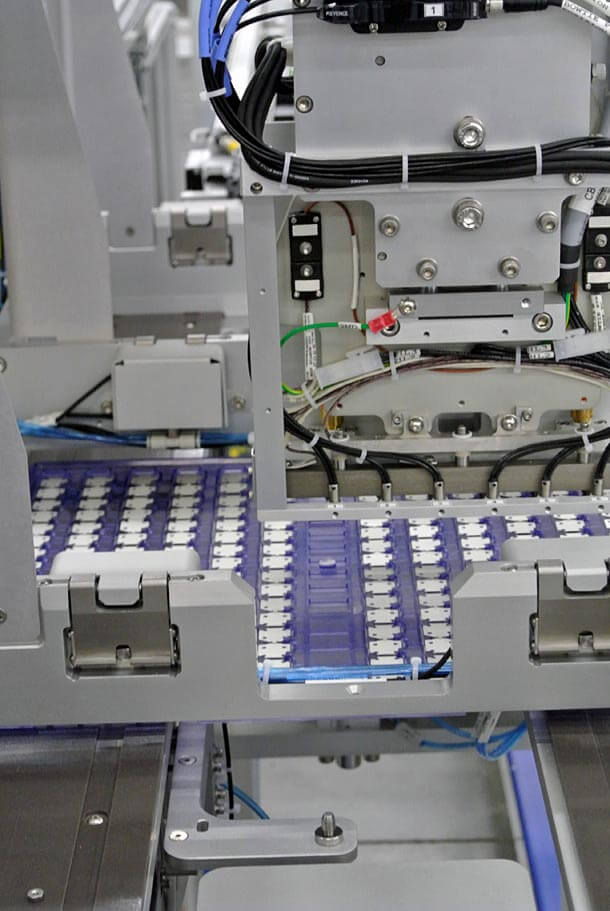

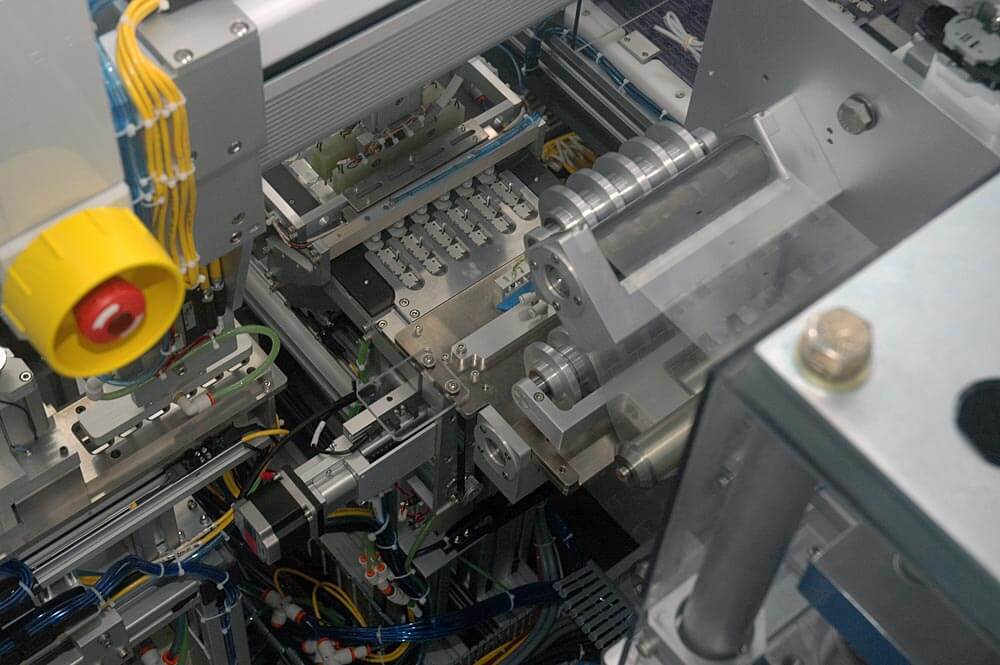

Assembling active components onto polymer strip

Electrical device assembly

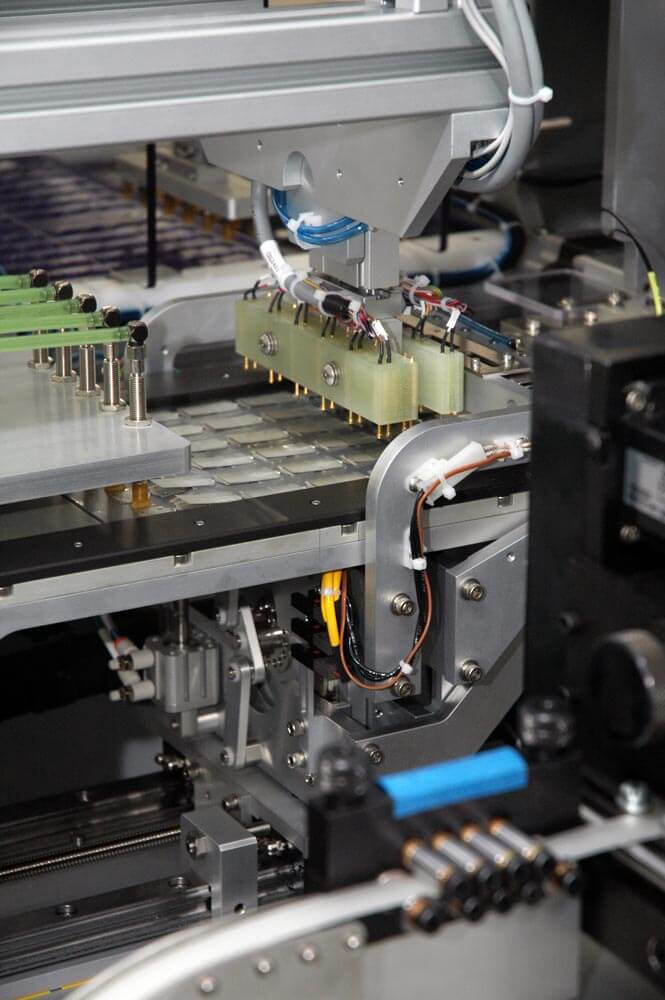

In-line electrical test

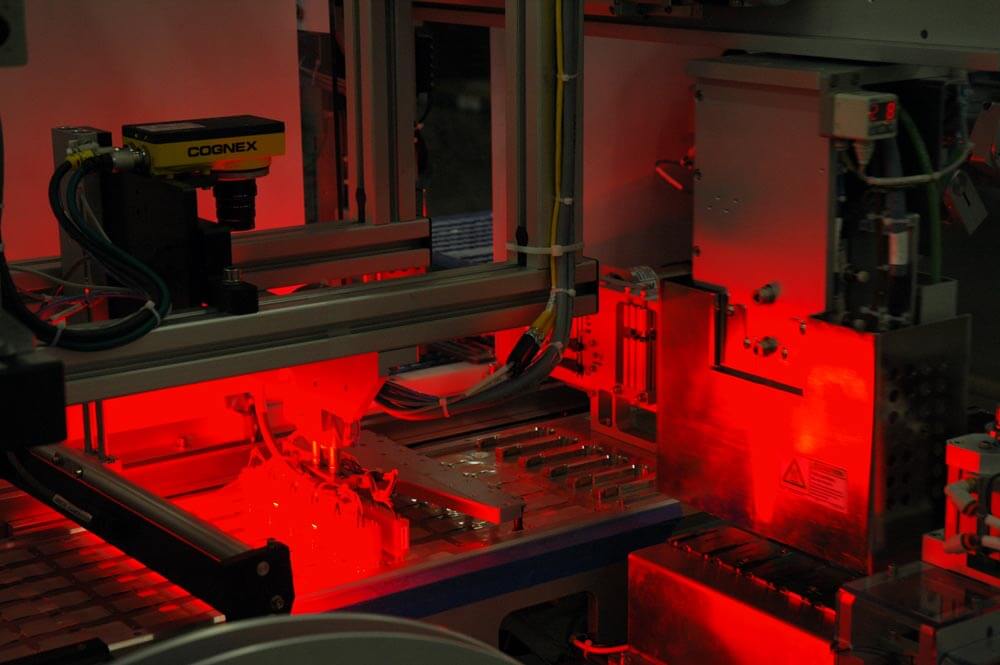

Heat staking and vision inspection

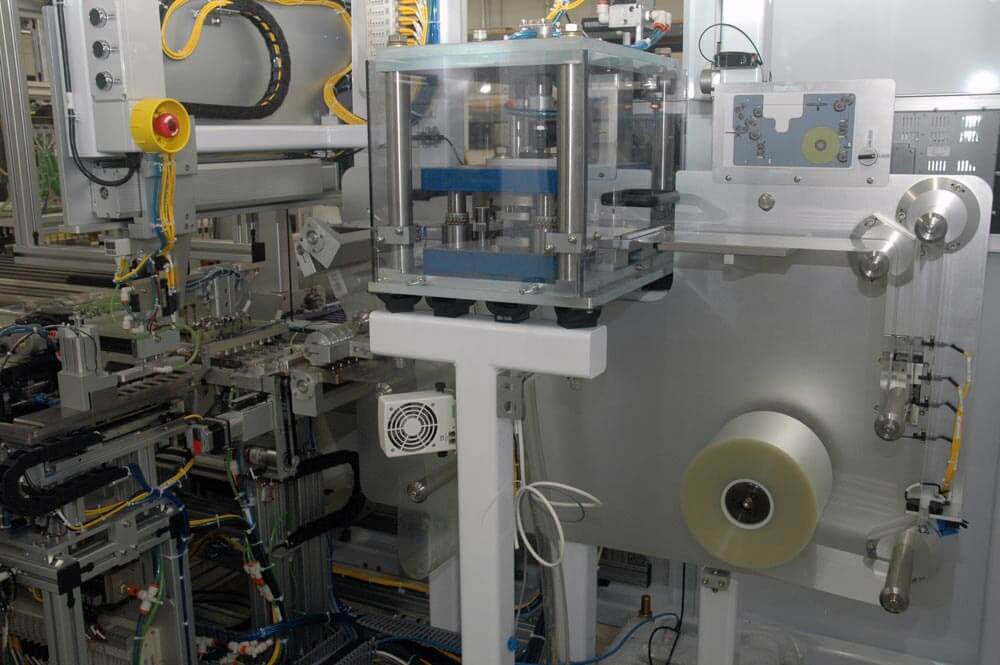

Incoming polymer feed roll and die cut station

Metal blank shearing station

Off-feed station

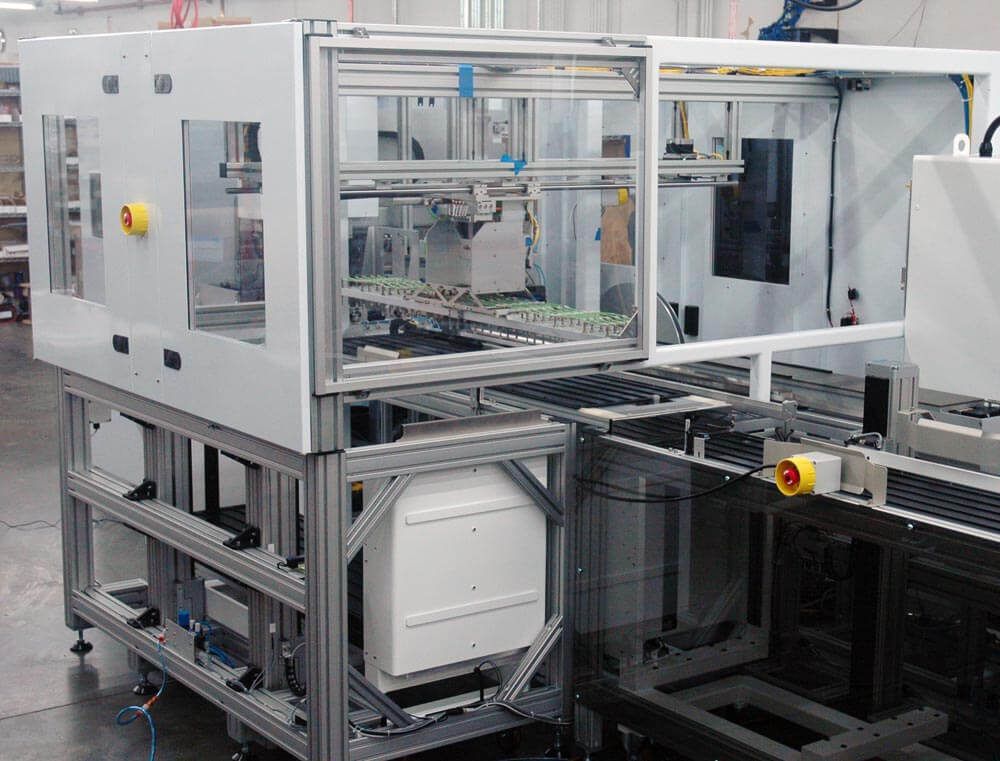

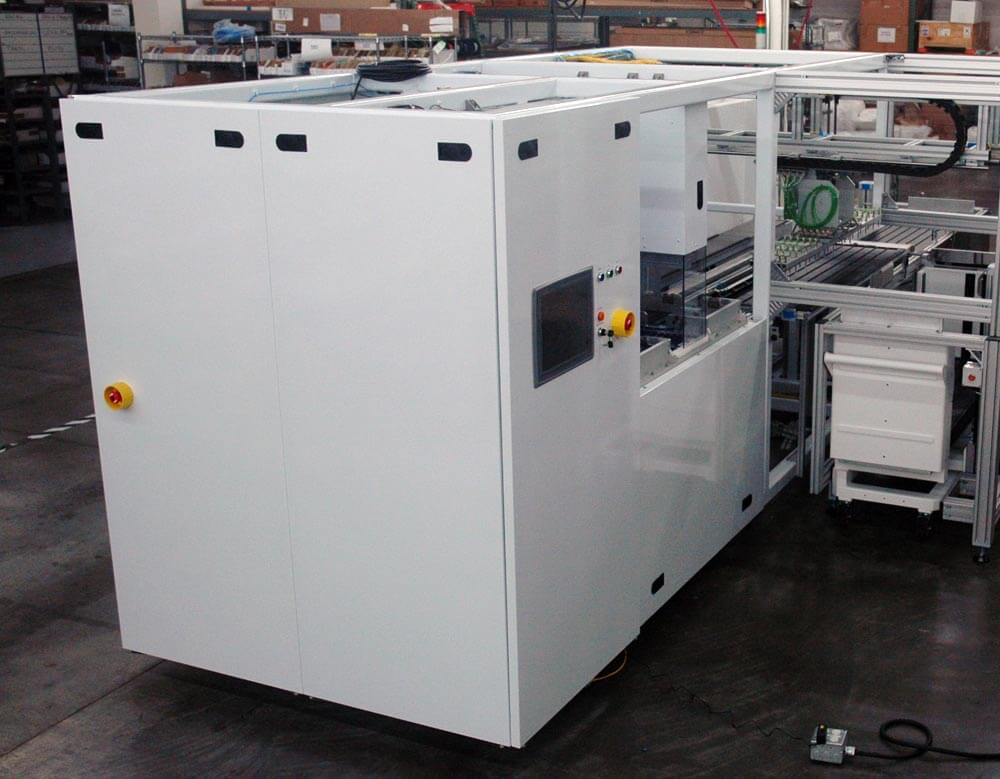

Assembly and test module

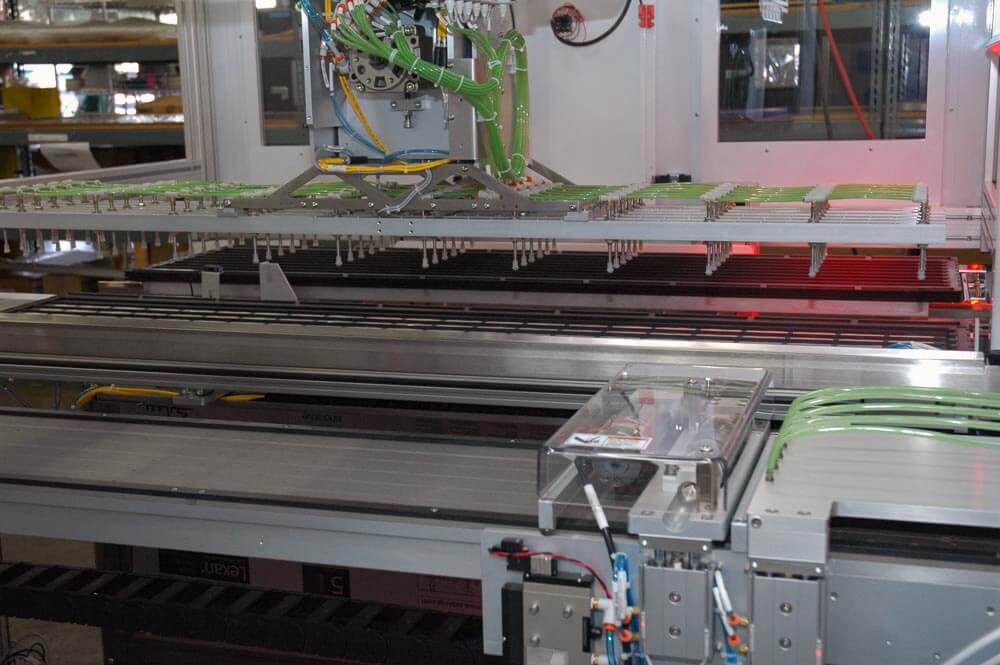

Output pick table and vacuum end effector

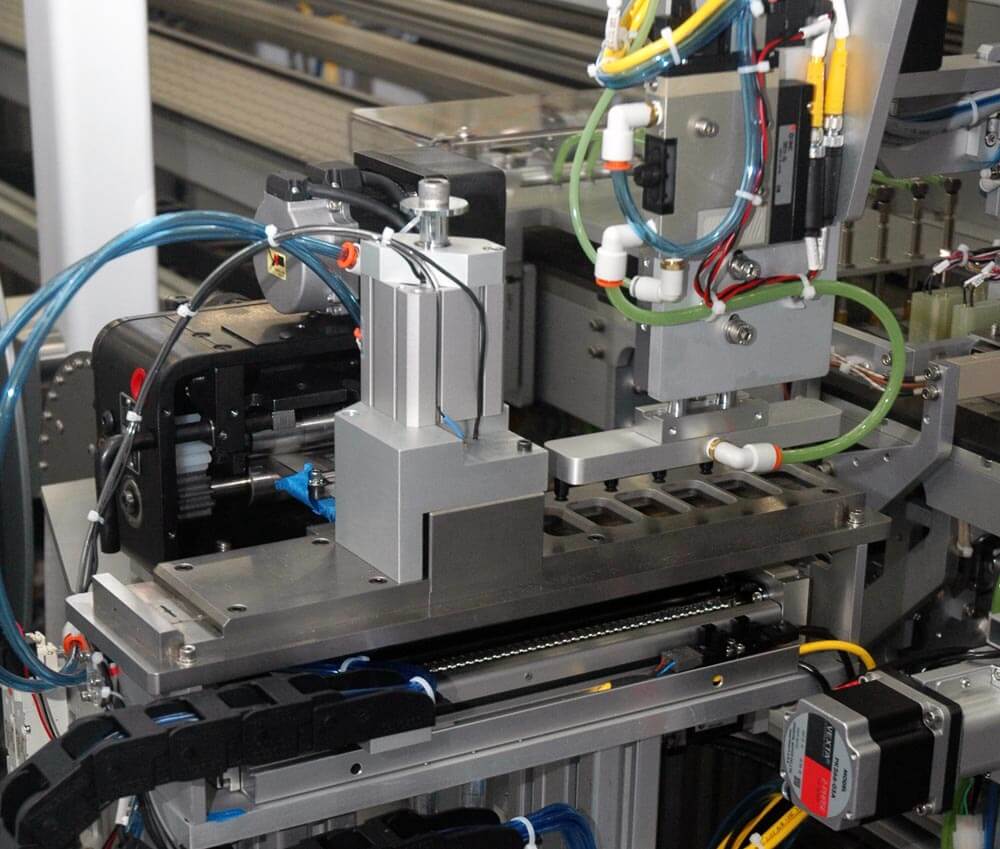

Polymer strip cutting mechanism

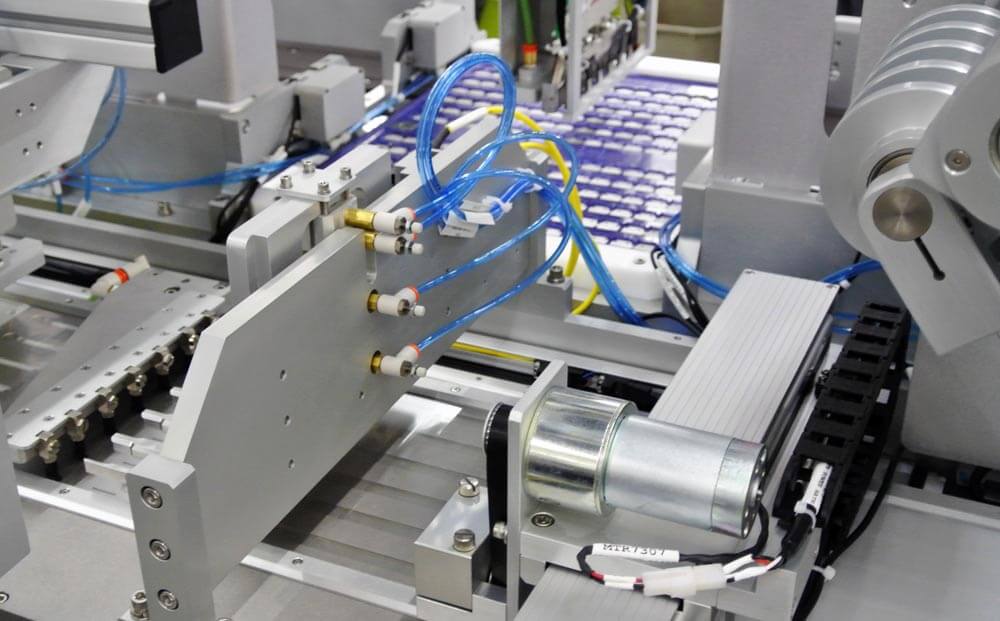

Active components delivered via tray and vacuum pick

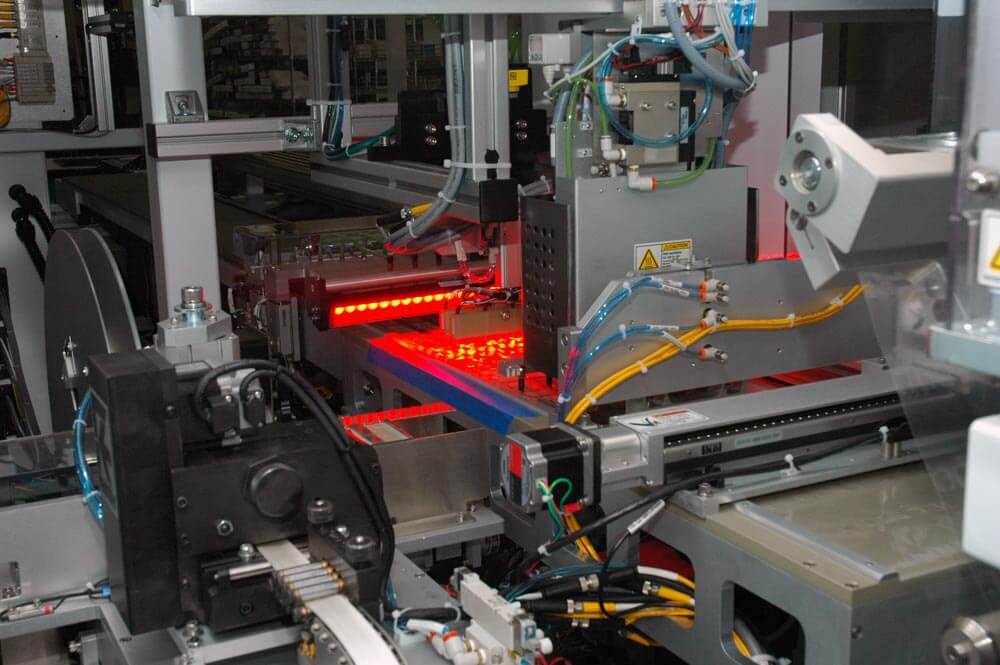

Heat staking, vision inspection, and in-line electrical test

Heat staking, vision inspection, and in-line electrical test

Technical Details

Processes

  • Web handling of polymer backing and metal interconnects
  • Die punching
  • Heat staking
  • Electrical test
  • Metal cut
  • Metrology and inspection

 Automation

  • Roll infeed with tension control
  • Automated slitting
  • Tray handling
  • Final vision inspection

Testimonial

“Having worked with Owens Design on multiple projects in the semiconductor and solar industries, I have found they can quickly solve some of my toughest automation problems. They were a great help in meeting very tight deadlines when we had to quickly ramp manufacturing.”

Director of Engineering
