Wafer Flipper Module Enables Advanced Manufacturing Processes

New manufacturing processes and the increasing need for backside contamination inspection require wafers to be loaded to the process or inspection chamber in a 90 or 180 degree flipped orientation. Typically these requirements are addressed by adding a wrist to the robot; however this approach can reduce throughput and complicate system architecture.

Owens Design has developed a robust and compact wafer flipper module that can accurately orient the substrate in a fast, clean, and reliable manner.

Contact us to learn more about custom automation solutions

Flipper Module Features

The wafer flip module has been designed to handle both 200 mm and 300 mm wafers and is compatible with both edge grip and vacuum paddle end effectors. Gripping pads are designed with a 3-degree slope to insure that a 1 mm wafer edge exclusion zone is not exceeded. Sensors are used to detect for both wafer presence and wafer grip to guarantee correct wafer placement.

The product has been designed such that no particles greater than 0.1 µm are detectable coming from the wafer flipper during motion. All motors and motion mechanisms are contained in a purged enclosure to eliminate any potential particle contamination during the wafer flipping process.

Integration

Ease of integration into an existing tool platform was carefully considered during the flip module design phase. Small footprint, high level command control, and low power requirements insure a simple integration.

The wafer flipper module meets standard regulatory requirements (CE, SEMI, ergonomic) and is designed for serviceability.

Wafer flips to any orientation from 0° to 360°

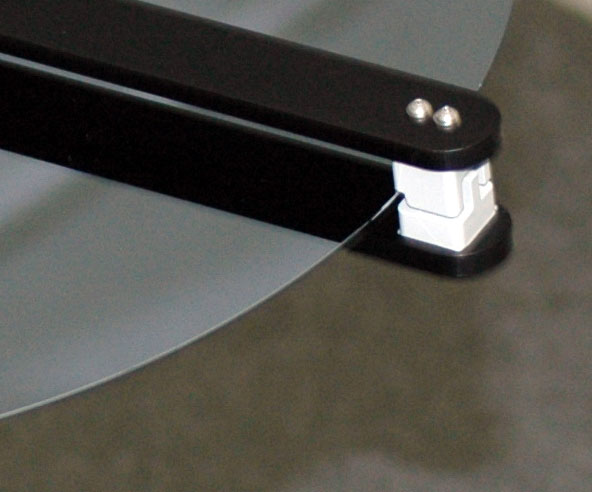

Edge grip pads maintain < 1mm edge exclusion

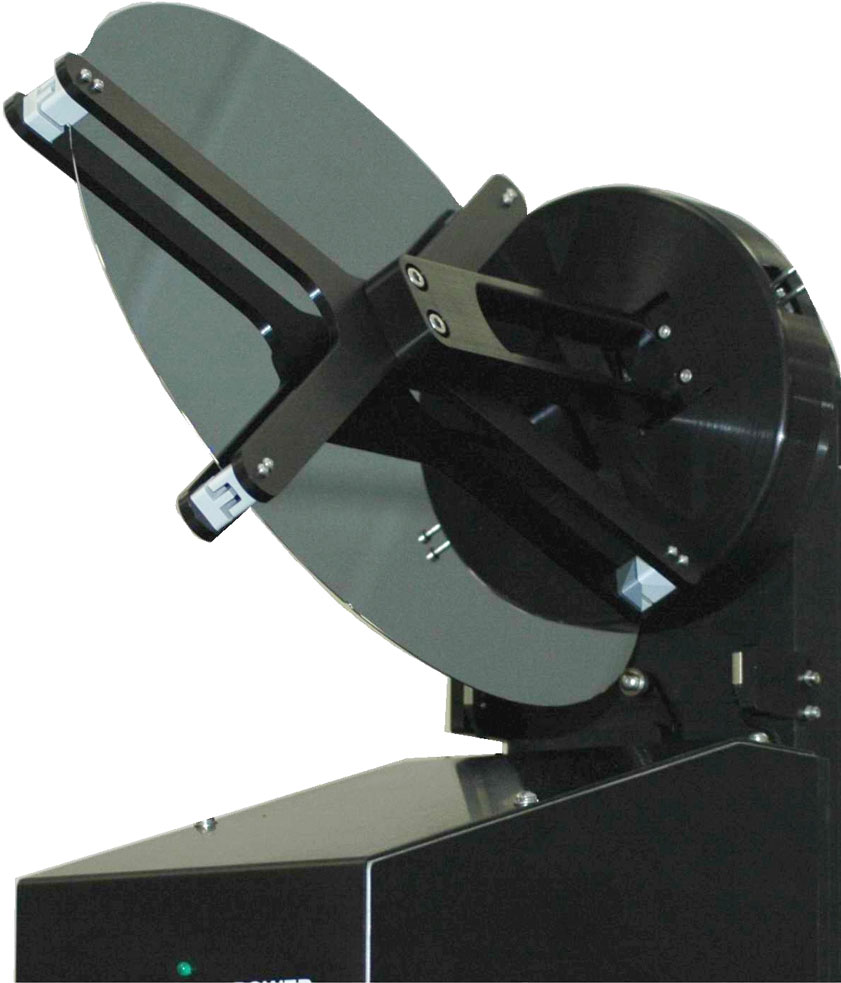

wafer flipper iso view

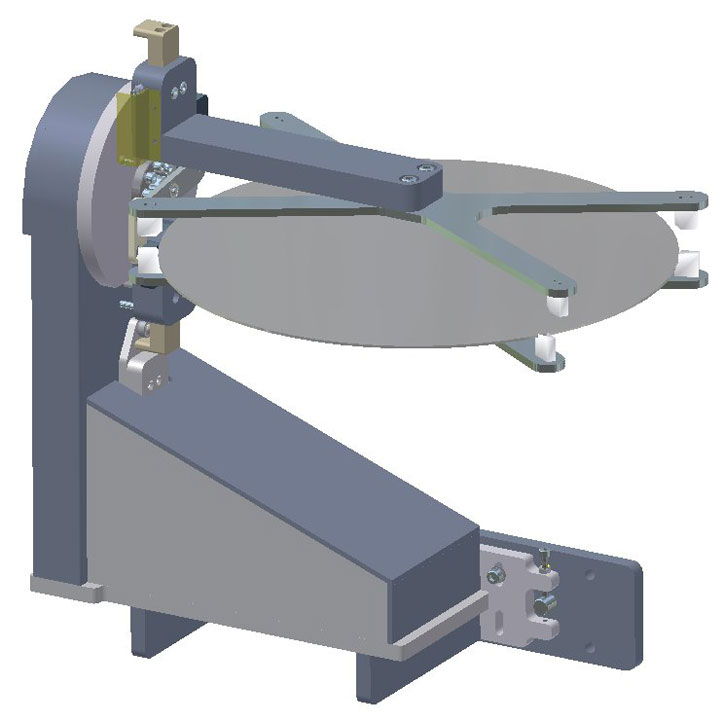

Module can be customized to meet most mounting arrangements

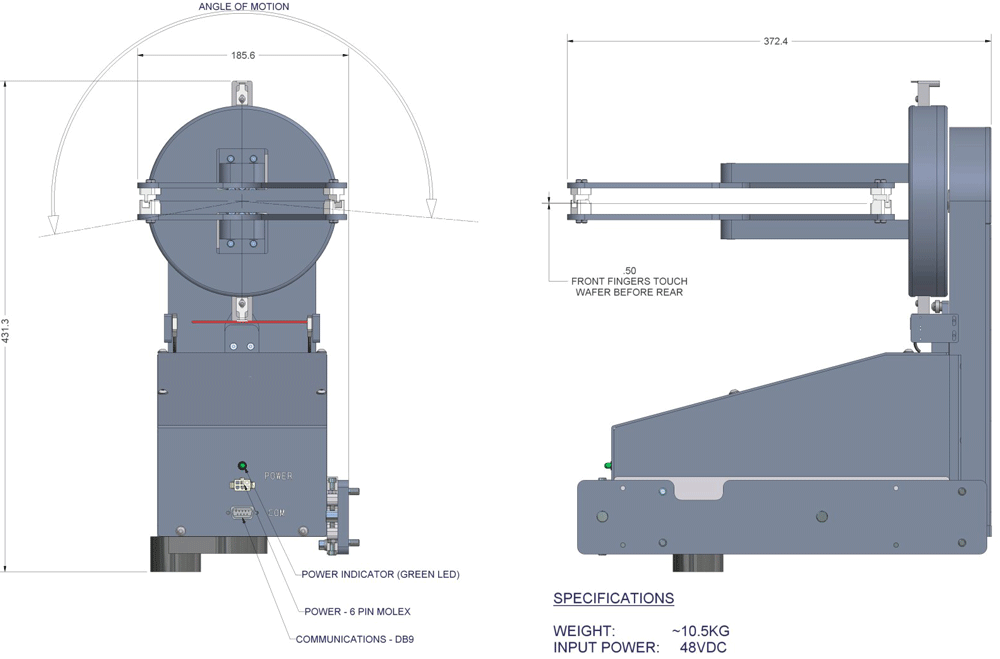

Wafer Flipper Mechanical Footprint

Technical Details

  • Wafer Size: 200 or 300mm, Silicon or Quartz
  • Exchange Time < 5 sec (wafer placement, grip, 180 degree rotation, ungrip, and wafer pickup)
  • Rotation Range: 360 degree continuous
  • Rotation Placement Repeatability: ± 0.5 degrees
  • End Effector Material Options: Ertalyte TX, Vespel, or PEEK
  • Contact Area not to Exceed 1 mm Edge Exclusion Zone

Cleanliness

  • Front side: Zero Particles @ 0.1 µm, PWP
  • Back side: Zero Particles @ 0.2 µm, PWP
  • Airborne: No Degradation to ISO Class 2 Environment

Regulatory Compliance

  • Input Power: 48 VDC / 3A
  • Compliant to SEMI, CE, NFPA

Testimonial

“Our collaboration with Owens Design has resulted in an industry-leading tool with excellent performance parameters and a low cost of ownership that make it extremely attractive to our customers.”

Henrik Bækbo, CTO, Capres A/S
